Z0107 Datasheet - NXP

Z0107 - Triacs

Passivated triacs in conventional and surface mounting packages.

Intended for use in applications requiring high bidirectional transient and blocking voltage capability.

Available in a range of gate current sensitivities for optimum performance.

Product availability: Z0103MA; Z0103NA; Z0107MA; Z0107

Z0107 Features

* s Blocking voltage to 800 V (NA and NN s 1 A on-state RMS current. types) 1.3 Applications s Home appliances s Fan controllers s Small motor control s Small loads in industrial process control. 2. Pinning information Table 1: Pin 1 2 3 1 2 3 4 Pinning - SOT54B (TO-92), SOT223, simplified outline an

Z0107_PhilipsSemiconductors.pdf

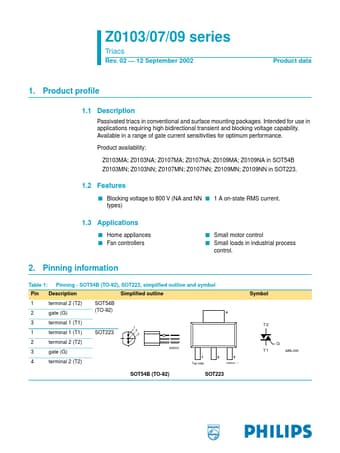

Preview of Z0107 PDF
Z0107 Datasheet Preview Page 2 Z0107 Datasheet Preview Page 3

Datasheet Details

Part number:

Z0107

Manufacturer:

NXP ↗

File Size:

267.62 KB

Description:

Triacs.
