10MB - Single Phase Bridge Rectifier

Naina Semiconductor

📥 Download Datasheet

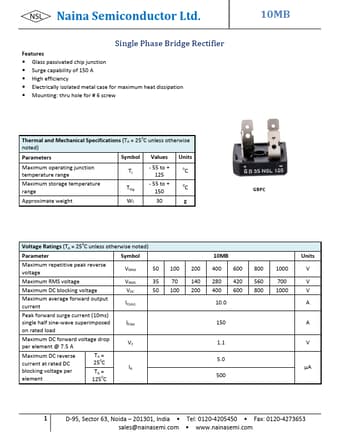

10MB Datasheet Preview — Preview of 10MB PDF

datasheet Preview Page 2

Datasheet Details

Part number	10MB
Manufacturer	Naina Semiconductor
File Size	153.65 KB
Description	Single Phase Bridge Rectifier
Datasheet	10MB_NainaSemiconductor.pdf

10MB Product details

Features

Glass passivated chip junction.
Surge capability of 150 A.
High efficiency.
Electrically isolated metal case for maximum heat dissipation.
Mounting: thru hole for # 6 screw 10MB Thermal and Mechanical Specifications (TA = 250C unless otherwise noted) Parameters Maximum operating junction temperature range Maximum storage temperature range Approximate weight Symbol TJ TStg WT Values - 55 to + 125 - 55 to + 150 30 Units 0 C C GBPC 0 g Voltage Rat.
