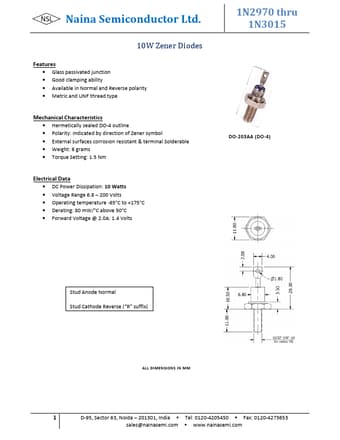

1N2982B ZENER DIODES

www.DataSheet.co.kr Naina Semiconductor emiconductor Ltd. Zener Diodes Electrical Characteristics (TC = 25OC unless otherwise specified) Nominal Zener Voltage VZ@IZT (Volts) 6.8 7.5 8.2 9.1 10 11 12 13 14 15 16 17 18 19 20 22 24 25 27 30 33 36 39 43 45 47 50 51 52 56 62 68 75 82 91 100 105 110 120 130 140 150 160 175 180 200 Zener Test Current IZT (mA) 370 335 305 275 250 230 210 190 180 170 155 145 140 130 125 115 105 100 95 85 75 70 65 60 55 55 50 50 50 45 40 37 33 30 28 25 25 23 20 19 18 17 .
