NP5002R, NP5002 - Press Fit Auto Rectifier

Naina Semiconductor

📥 Download Datasheet

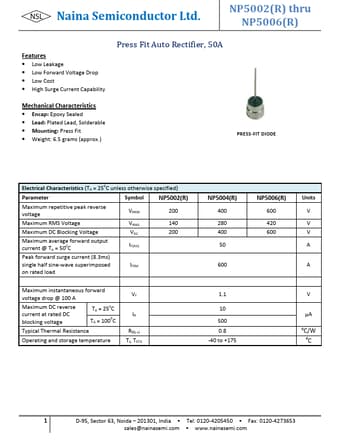

NP5002R Datasheet Preview — This datasheet PDF includes multiple part numbers: NP5002R, NP5002. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

Datasheet Details

Part number	NP5002R, NP5002
Manufacturer	Naina Semiconductor
File Size	165.38 KB
Description	Press Fit Auto Rectifier
Datasheet	NP5002_NainaSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: NP5002R, NP5002. Please refer to the document for exact specifications by model.

NP5002R Product details

Features

Low Leakage Low Forward Voltage Drop Low Cost High Surge Current Capability NP5002(R) thru NP5006(R) Mechanical Characteristics.
Encap: Epoxy Sealed Lead: Plated Lead, Solderable Mounting: Press Fit Weight: 6.5 grams (approx. ) PRESS-FIT DIODE Electrical Characteristics (TA = 250C unless otherwise specified) Parameter Maximum repetitive peak reverse voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum av.
