NTD122C - Thyristor/Diode Module

Naina Semiconductor

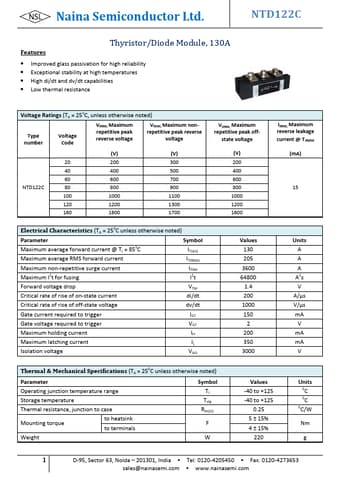

NTD122C Datasheet Preview — Preview of NTD122C PDF

Datasheet Details

Part number	NTD122C
Manufacturer	Naina Semiconductor
File Size	220.44 KB
Description	Thyristor/Diode Module
Datasheet	NTD122C-NainaSemiconductor.pdf

NTD122C Product details

Description

Series Connection (doubler circuit) Configuration Code N Common Anode A Circuit Drawing 2 D-95, Sector 63, Noida 201301, India Tel: 0120-4205450 Fax: 0120-4273653 sales@nainasemi.com www.nainasemi.com Naina Semiconductor Ltd.Ordering Table NTD 122 12 C 3 N 160 45 1 Power Module > DD = Diode-Diode > TD = Thyristor-Diode > TT = Thyristor-Thyristor 2 Current Rating = IF (AV) 3 Package Type 4 Circuit Configur

Features

Thyristor/Diode Module, 130A.
Improved glass passivation for high reliability.
Exceptional stability at high temperatures.
High di/dt and dv/dt capabilities.
Low thermal resistance Voltage Ratings (TA = 25oC, unless otherwise noted) Type number Voltage Code VRRM, Maximum repetitive peak reverse voltage VRSM, Maximum nonrepetitive peak reverse voltage NTD122C 20 40 60 80 100 120 160 (V) 200 400 600 800 1000 1200 1600 (V) 300 500 700 900 1100 1300 170.
