SD41, SD41R - (SD41 - SD4145R) Schottky Power Diode

Naina Semiconductor

Datasheet Details

Part number	SD41, SD41R
Manufacturer	Naina Semiconductor
File Size	170.27 KB
Description	(SD41 - SD4145R) Schottky Power Diode
Datasheet	SD41R_NainaSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: SD41, SD41R. Please refer to the document for exact specifications by model.

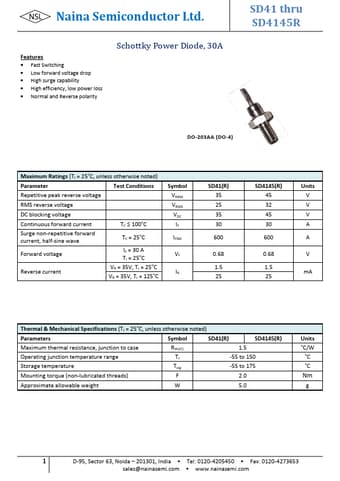

Fast Switching Low forward voltage drop High surge capability High efficiency, low power loss Normal and Reverse polarity SD41 thru SD4145R DO-203AA (DO-4) Maximum Ratings (TJ = 25oC, unless otherwise noted) Parameter Repetitive peak reverse voltage RMS reverse voltage DC blocking voltage Continuous forward current Surge non-repetitive forward current, half-sine wave Forward voltage Reverse current TC ≤ 100 C TC = 25oC IF = 30 A TJ = 25oC VR =.
