JQ1-12 - (JQ Relays) HIGH ELECTRICAL MECHANICAL NOISE IMMUNITY RELAY

Nais

📥 Download Datasheet

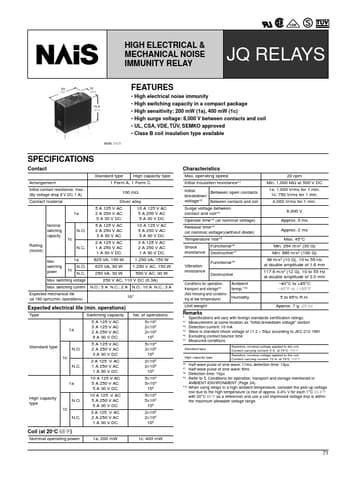

JQ1-12 Datasheet Preview — Preview of JQ1-12 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	JQ1-12
Manufacturer	Nais
File Size	107.01 KB
Description	(JQ Relays) HIGH ELECTRICAL MECHANICAL NOISE IMMUNITY RELAY
Datasheet	JQ1-12_Nais.pdf

JQ1-12 Product details

Features

High electrical noise immunity.
High switching capacity in a compact package.
High sensitivity: 200 mW (1a), 400 mW (1c).
High surge voltage: 8,000 V between contacts and coil.
UL, CSA, VDE, TÜV, SEMKO approved.
Class B coil insulation type available mm inch 15.6 .614.
