JQ1P-48V, JQ1-12 - HIGH ELECTRICAL MECHANICAL NOISE IMMUNITY RELAY

Nais

📥 Download Datasheet

JQ1P-48V Datasheet Preview — This datasheet PDF includes multiple part numbers: JQ1P-48V, JQ1-12. Please refer to the document for exact specifications by model.

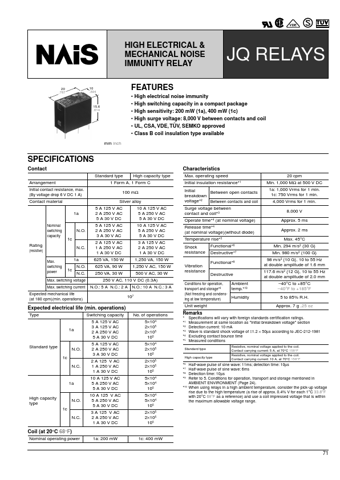

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	JQ1P-48V, JQ1-12
Manufacturer	Nais
File Size	107.01 KB
Description	HIGH ELECTRICAL MECHANICAL NOISE IMMUNITY RELAY
Datasheet	JQ1-12_Nais.pdf
Note	This datasheet PDF includes multiple part numbers: JQ1P-48V, JQ1-12. Please refer to the document for exact specifications by model.

JQ1P-48V Product details

Features

High electrical noise immunity.
High switching capacity in a compact package.
High sensitivity: 200 mW (1a), 400 mW (1c).
High surge voltage: 8,000 V between contacts and coil.
UL, CSA, VDE, TÜV, SEMKO approved.
Class B coil insulation type available mm inch.
