SRF30150CT, SRF3020CT, SCHOTTKY BARRIER RECTIFIER

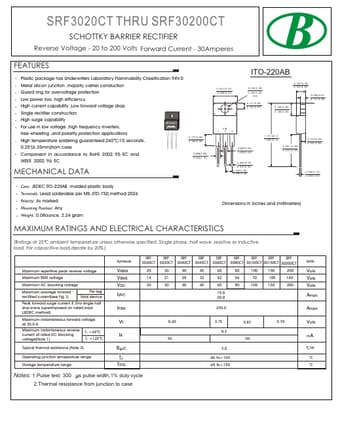

SRF3020CT THRU SRF30200CT SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 20 to 200 Volts Forward Current - 30Amperes .

SRF3020CT-Nanjing.pdf

SRF30150CT Datasheet Preview — This datasheet PDF includes multiple part numbers: SRF30150CT, SRF3020CT. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SRF30150CT, SRF3020CT

Manufacturer:

Nanjing

File Size:

66.76 KB

Description:

SCHOTTKY BARRIER RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: SRF30150CT, SRF3020CT.
Please refer to the document for exact specifications by model.

Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-0 Metal silicon junction ,majority carrier conduction Guard ring for overvoltage protection Low power loss ,high efficiency High current capability ,Low forward voltage drop Single rectifier construction High surge ca

Applications

* High temperature soldering guaranteed:260 C/10 seconds, 0.25"(6.35mm)from case Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC 0.177(4.50) 0.138(3.50) 0.056(1.43) 0.043(1.10) MECHANICAL DATA 0.410(10.41) 0.390(9.91) ITO-220AB 0.140(3.55) 0.128(3.25) DIA 0.111(2.83) 0.101(2.57
