CD110 - ALUMINUM ELECTROLYTIC CAPACITORSS

📥 Download Datasheet

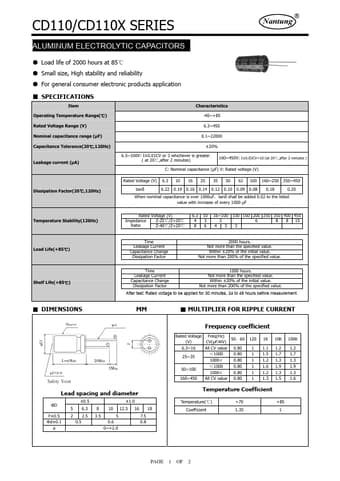

Datasheet preview – CD110

Datasheet Details

Part number CD110
Manufacturer Nantung
File Size 221.75 KB
Description ALUMINUM ELECTROLYTIC CAPACITORSS
Datasheet download datasheet CD110 Datasheet
Additional preview pages of the CD110 datasheet.

📁 Similar Datasheet

  • CD1100T5B - REVER BLOCKING TRIODE THYRISTORS (JILIN SINO)
  • CD110PT - Capacitor (Jianghai Europe GmbH)
  • CD11 - Miniature Standard Capacitors (CDIL)
  • CD11-E - Aluminum Electrolytic Capacitors (YUNXING)
  • CD11-xxxxxxxxYAS - Ceramic Capacitors (TDK)
  • CD1130CP - AM Tuner System (HUAJING)
  • CD1186GS - FM Front End (Semico)
  • CD1191CB - Monolithic FM AM radio circuit (ETC)
  • CD11GE - ALUMINUM ELECTROLYTIC CAPACITOR (JINPEI ELECTRONICS)
  • CD11GES - MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS (AiSHi)
Other Datasheets by Nantung
  • CD110X - ALUMINUM ELECTROLYTIC CAPACITORSS

Full PDF Text Transcription

Click to expand full text
CD110/CD110X SERIES ALUMINUM ELECTROLYTIC CAPACITORSS ● Load life of 2000 hours at 85℃ ● Small size, High stability and reliability ● For general consumer electronic products application ■ SPECIFICATIONS Item Operating Temperature Range(℃) Rated Voltage Range (V) Nominal capacitance range (μF) Capacitance Tolerance(20℃,120Hz) Leakage current (μA) Characteristics -40~+85 6.3~450 0.1~22000 ±20% 6.3~100V: I≤0.01CV or 3 whichever is greater. ( at 20℃,after 2 minutes) 160~450V: I≤0.03CV+10 (at 20℃,after 2 minutes ) C: Nominal capacitance (μF) V: Rated voltage (V) Dissipation Factor(20℃,120Hz) Rated Voltage (V) 6.3 10 16 25 35 50 63 100 160~250 350~450 tanδ 0.22 0.19 0.16 0.14 0.12 0.10 0.09 0.08 0.18 0.20 When nominal capacitance is over 1000uF，tanδ shall be added 0.
