NT5SV64M4BS, NT5SV16M16BS Datasheet - Nanya Technology

NT5SV64M4BS (NT5SVxxMxxBx) 256Mb SDRAM

The NT5SV64M4BS, NT5SV64M4BT, NT5SV32M8BS, NT5SV32M8BT, NT5SV16M16BS, and NT5SV16M16BT are four-bank Synchronous DRAMs organized as 16Mbit x 4 I/O x 4 Bank, 8Mbit x 8 I/O x 4 Bank, and 4Mbit x 16 I/O x 4 Bank, respectively. These synchronous devices achieve high-speed data transfer rates of up to 16.

NT5SV64M4BS Features

* High Performance: 6K 75B Units CL=3 CL=3 fCK tCK tAC tAC Clock Frequency Clock Cycle Clock Access Time1 Clock Access Time2 166 6

* 5 133 MHz 7.5

* 5.4 ns ns ns 1. Terminated load. See AC Characteristics on page 37 2. Unterminated load. See AC Characteristics on page 37 3.

NT5SV16M16BS_NanyaTechnology.pdf

This datasheet PDF includes multiple part numbers: NT5SV64M4BS, NT5SV16M16BS. Please refer to the document for exact specifications by model.

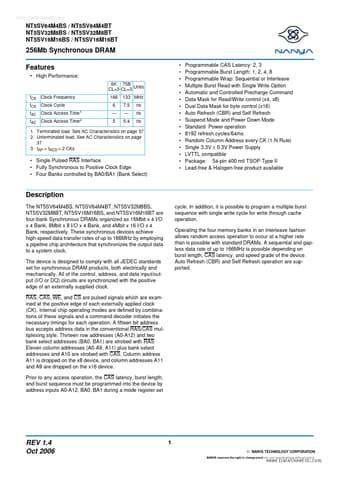

NT5SV64M4BS Datasheet Preview Page 2 NT5SV64M4BS Datasheet Preview Page 3

Datasheet Details

Part number:

NT5SV64M4BS, NT5SV16M16BS

Manufacturer:

Nanya Technology

File Size:

2.78 MB

Description:

(nt5svxxmxxbx) 256mb sdram.

Note:

This datasheet PDF includes multiple part numbers: NT5SV64M4BS, NT5SV16M16BS.
Please refer to the document for exact specifications by model.
