LM98725

81 MSPS Analog Front-End

LM98725 Features

* LVDS/CMOS Outputs LVDS/CMOS/Crystal Clock Source with PLL Multiplication Integrated Flexible Spread Spectrum Clock Generation CDS or S/H Processing for CCD or CIS sensors Independent Gain/Offset Correction for Each Channel Automatic Gain and Offset for

LM98725 General Description

The LM98725 is a fully integrated, high performance 16-Bit, 81 MSPS signal processing solution for digital color copiers, scanners, and other image processing applications. Highspeed signal throughput is achieved with an innovative architecture utilizing Correlated Double Sampling (CDS), typically e.

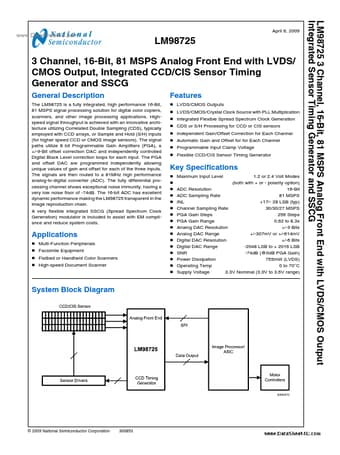

LM98725 Datasheet (501.04 KB)

Preview of LM98725 PDF

Datasheet Details

Part number:

LM98725

Manufacturer:

National Semiconductor Corporation

File Size:

501.04 KB

Description:

81 msps analog front-end.
LM98725 3 Channel, 16-Bit, 81 MSPS Analog Front End with LVDS/CMOS Output Integrated Sensor Timing Generator and SSCG www.DataSheet4U.com April 6, 2.
