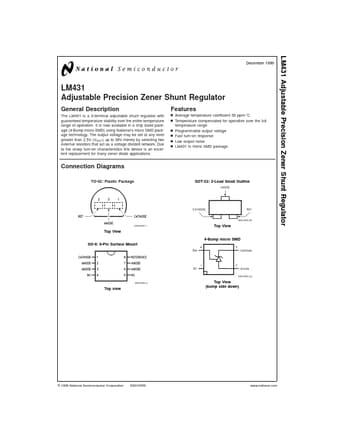

Preview of 431CCM PDF
431CCM Datasheet Preview Page 2 431CCM Datasheet Preview Page 3

Datasheet Details

Part number:

431CCM

Manufacturer:

National Semiconductor

File Size:

389.33 KB

Description:

Adjustable precision zener shunt regulator.

431CCM, Adjustable Precision Zener Shunt Regulator

The LM431 is a 3-terminal adjustable shunt regulator with guaranteed temperature stability over the entire temperature range of operation.

It is now available in a chip sized package (4-Bump micro SMD) using National’s micro SMD package technology.

The output voltage may be set at any level greater

431CCM Features

* n Average temperature coefficient 50 ppm/˚C n Temperature compensated for operation over the full temperature range n Programmable output voltage n Fast turn-on response n Low output noise n LM431 in micro SMD package Connection Diagrams TO-92: Plastic Package SOT-23: 3-Lead Small Outline DS010055
