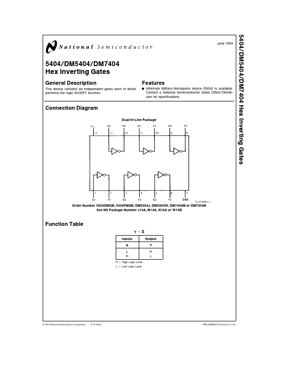

5404DMQB - Hex Inverting Gates

National Semiconductor

Datasheet Details

This device contains six independent gates each of which performs the logic INVERT function

Y Alternate Military Aerospace device (5404) is available Contact a National Semiconductor Sales Office Distributor for specifications Connection Diagram Dual-In-Line Package TL F 6494.
1 Order Number 5404DMQB 5404FMQB DM5404J DM5404W DM7404M or DM7404N See NS Package Number J14A M14A N14A or W14B Function Table YeA Inputs A L H H e High Logic Level L e Low Logic Level Output Y H L C1995 National Semiconductor Corporation TL F 6494 RRD-B30M105 Printed in U S A Absolute Maximum.
