True-Inverting Octal TRI-STATE Transceiver

54643 Features

* Y TTL input compatible Y Octal TRI-STATE outputs for mP bus applications 6 mA typical Y High speed 16 ns typical propagation delay Y Low power 80 mA maximum (74HCT) Connection Diagram Dual-In-Line Packages TL F 5370

* 1 Top View Order Number MM54HCT640 or MM74HCT640 TL F 5370

* 2

54643 General Description

These TRI-STATE bi-directional transceivers utilize advanced silicon-gate CMOS technology and are intended for two-way asynchronous communication between data buses They have high drive current outputs which enable high speed operation even when driving large bus capacitances These circuits possess .

54643 Datasheet (118.25 KB)

Preview of 54643 PDF

Datasheet Details

Part number:

54643

Manufacturer:

National Semiconductor

File Size:

118.25 KB

Description:

True-inverting octal tri-state transceiver.
MM54HCT640 MM74HCT640 Inverting Octal TRI-STATE Transceiver MM54HCT643 MM74HCT643 True-Inverting Octal TRI-STATE Transceiver February 1988 MM54HCT64.

📁 Related Datasheet

54640 - Inverting Octal TRI-STATE Transceiver (National Semiconductor)
MM54HCT640 MM74HCT640 Inverting Octal TRI-STATE Transceiver MM54HCT643 MM74HCT643 True-Inverting Octal TRI-STATE Transceiver February 1988 MM54HCT64.

5460A - CS5460A (Cirrus Logic)
CS5460A Single Phase Bi-Directional Power/Energy IC Features Energy Data Linearity: ±0.1% of Reading over 1000:1 Dynamic Range. On-Chip Functions: (R.

54670 - 4-BY-4 REGISTER FILES (National Semiconductor)
.

54688 - 8-Bit Magnitude Comparator (National Semiconductor)
MM54HCT688 MM74HCT688 8-Bit Magnitude Comparator (Equality Detector) February 1988 MM54HCT688 MM74HCT688 8-Bit Magnitude Comparator (Equality Detect.

5400 - Quad 2-Input NAND Gates (National Semiconductor)
5400 DM5400 DM7400 Quad 2-Input NAND Gates June 1989 5400 DM5400 DM7400 Quad 2-Input NAND Gates General Description This device contains four indepe.

5402 - Quad 2-Input NOR Gates (National Semiconductor)
5402 DM5402 DM7402 Quad 2-Input NOR Gates June 1989 5402 DM5402 DM7402 Quad 2-Input NOR Gates General Description This device contains four independ.

5404 - Hex Inverting Gates (National Semiconductor)
5404 DM5404 DM7404 Hex Inverting Gates June 1989 5404 DM5404 DM7404 Hex Inverting Gates General Description This device contains six independent gat.

5404DMQB - Hex Inverting Gates (National Semiconductor)
5404 DM5404 DM7404 Hex Inverting Gates June 1989 5404 DM5404 DM7404 Hex Inverting Gates General Description This device contains six independent gat.

TAGS

54643 True-Inverting Octal TRI-STATE Transceiver National Semiconductor

Image Gallery

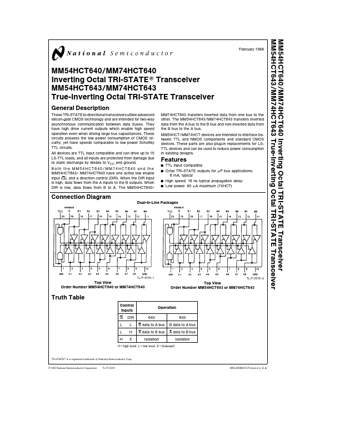

54643 Datasheet Preview Page 2 54643 Datasheet Preview Page 3
