74ACT899 - 9-Bit Latchable Transceiver

National Semiconductor

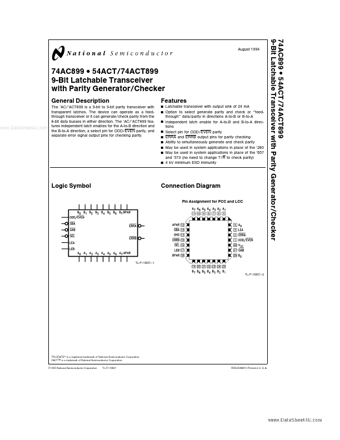

74ACT899 Datasheet Preview — Preview of 74ACT899 PDF

Datasheet Details

Part number	74ACT899
Manufacturer	National Semiconductor ↗
File Size	218.50 KB
Description	9-Bit Latchable Transceiver
Datasheet	74ACT899_NationalSemiconductor.pdf

74ACT899 Product details

Description

The ’AC ’ACT899 is a 9-bit to 9-bit parity transceiver with transparent latches The device can operate as a feedthrough transceiver or it can generate check parity from the 8-bit data busses in either direction The ’AC ’ACT899 feawww.DataSheet4U.com tures independent latch enables for the A-to-B direction and the B-to-A direction a select pin for ODD EVEN parity and separate error signal output pins for checking parity

Features

Y Y Y Y Y Y Y Y Y Latchable transceiver with output sink of 24 mA Option to select generate parity and check or ‘‘feedthrough’’ data parity in directions A-to-B or B-to-A Independent latch enable for A-to-B and B-to-A directions Select pin for ODD EVEN parity ERRA and ERRB output pins for parity checking Ability to simultaneously generate and check parity May be used in system.
