74F243 - Quad Bus Transceiver

74F243 Description

54F 74F243 Quad Bus Transceiver with TRI-STATE Outputs Obsolete November 1994 54F 74F243 Quad Bus Transceiver with TRI-STATE Outputs General Descr.
The ’F243 is a quad bus transmitter receiver designed for 4-line asynchronous 2-way data communications between data busses Features Y 2-Way asynchro.

📥 Download Datasheet

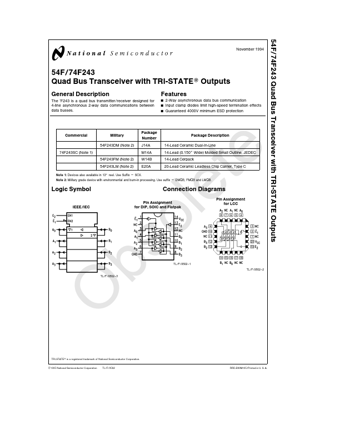

Preview of 74F243 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
74F243
Manufacturer
National Semiconductor
File Size
319.63 KB
Datasheet
74F243-NationalSemiconductor.pdf
Description
Quad Bus Transceiver
