74LS126A - Quad TRI-STATE Buffer

Datasheet Summary

Description

This device contains four independent gates each of which performs a non-inverting buffer function The outputs have the TRI-STATE feature When enabled the outputs exhibit the low impedance characteristics of a standard LS output with additional drive capability to permit the driving of bus lines wit

📥 Download Datasheet

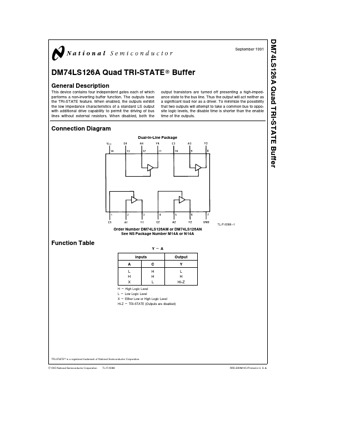

Datasheet preview – 74LS126A
