ADC081S021

8-Bit A/D Converter

ADC081S021 Features

* n n n n n Specified over a range of sample rates. 6-lead LLP and SOT-23 packages Variable power management Single power supply with 2.7V - 5.25V range SPI™/QSPI™/MICROWIRE/DSP compatible Key Specifications n n n n DNL INL SNR Power Consumption

* 3.6V Supply

* 5.25V Supply +0.04/-0.0

ADC081S021 General Description

The ADC081S021 is a low-power, single channel CMOS 8-bit analog-to-digital converter with a high-speed serial interface. Unlike the conventional practice of specifying performance at a single sample rate only, the ADC081S021 is fully specified over a sample rate range of 50 ksps to 200 ksps. The con.

ADC081S021 Datasheet (747.88 KB)

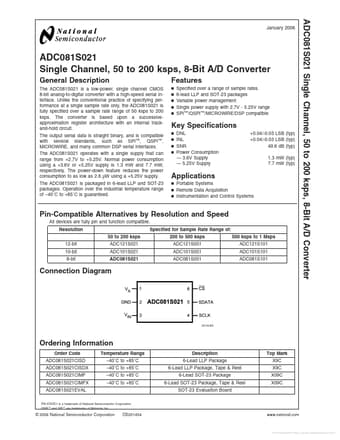

Preview of ADC081S021 PDF

Datasheet Details

Part number:

ADC081S021

Manufacturer:

National Semiconductor

File Size:

747.88 KB

Description:

8-bit a/d converter.
ADC081S021 Single Channel, 50 to 200 ksps, 8-Bit A/D Converter January 2006 ADC081S021 Single Channel, 50 to 200 ksps, 8-Bit A/D Converter General D.
