ADC12191 Datasheet, Converter, National Semiconductor

ADC12191 Features

  • Converter n n n n n Single 5V power supply Simple analog input interface Internal Sample-and-hold Internal Reference buffer amplifier Low power consumption Key Specifications n Resolution n Conv

PDF File Details

Part number:

ADC12191

Manufacturer:

National Semiconductor

File Size:

278.85kb

Download:

📄 Datasheet

Description:

12-bit/ 10 mhz self-calibrating/ pipelined a/d converter. The ADC12191 is a monolithic CMOS analog-to-digital converter capable of converting analog input signals into 12-bit digital words at

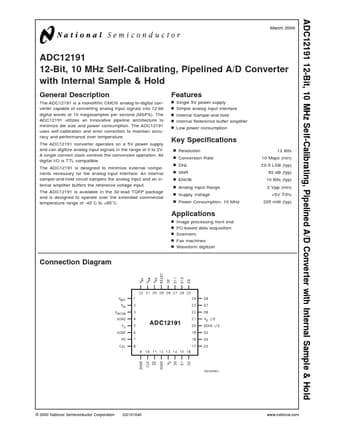

Datasheet Preview: ADC12191 📥 Download PDF (278.85kb)
Page 2 of ADC12191 Page 3 of ADC12191

ADC12191 Application

  • Applications n n n n n Image processing front end PC-based data acquisition Scanners Fax machines Waveform digitizer Connection Diagram DS101040-1
