CD4011BM Datasheet - National Semiconductor

Quad 2-Input NOR/NAND Gate

CD4011BM Features

* Y Y Y Y Low power TTL Fan out of 2 driving 74L compatibility or 1 driving 74LS 5V

* 10V

* 15V parametric ratings Symmetrical output characteristics Maximum input leakage 1 mA at 15V over full temperature range Schematic Diagrams CD4001BC BM of device shown JeAaB Logical ‘‘1’’ e Hi

CD4011BM General Description

These quad gates are monolithic complementary MOS (CMOS) integrated circuits constructed with N- and P-channel enhancement mode transistors They have equal source and sink current capabilities and conform to standard B series output drive The devices also have buffered outputs which improve transfer.

CD4011BM Datasheet (167.61 KB)

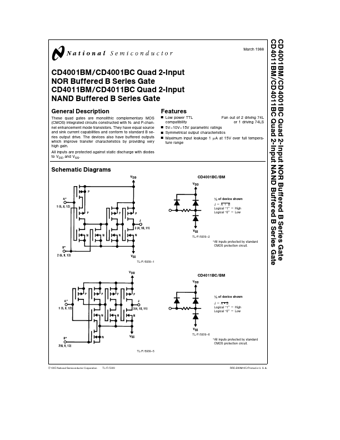

CD4011BM Datasheet Preview — Preview of CD4011BM PDF

Datasheet Details

Part number:

CD4011BM

Manufacturer:

National Semiconductor

File Size:

167.61 KB

Description:

Quad 2-input nor/nand gate.
CD4001BM CD4001BC Quad 2-Input NOR Buffered B Series Gate CD4011BM CD4011BC Quad 2-Input NAND Buffered B Series Gate March 1988 CD4001BM CD4001BC Qu.
