CGS74B2529

1 to 10 Minimum Skew Clock Driver

CGS74B2529 Features

* Clock Generation and Support (CGS) devices

* Ideal for high frequency signal generation or clock distribution applications

* CGS74B version features National's Advanced Bipolar FAST«I LSI process

* 1

* to-10 low skew clock distribution

* 550 ps pin-to-pin

CGS74B2529 General Description

This minimum skew clock driver is designed for Clock Gen
* eration and Support (CGS) applications operating from 33 MHz to 80 MHz. The devices guarantee minimum output skew across the outputs of a given device. Skew parameters are also provided as a means to measure duty cycle requirements as tho.

CGS74B2529 Datasheet (122.12 KB)

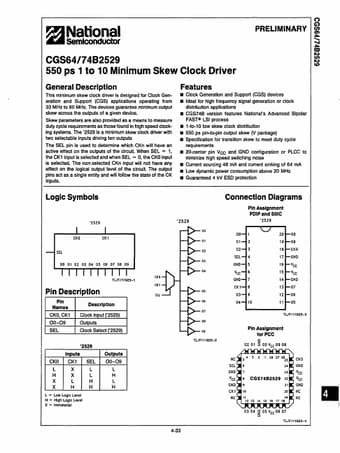

Preview of CGS74B2529 PDF

Datasheet Details

Part number:

CGS74B2529

Manufacturer:

National Semiconductor

File Size:

122.12 KB

Description:

1 to 10 minimum skew clock driver.
