COP884CG - 8-Bit Microcontroller with UART and Three Multi-Function Timers

National Semiconductor

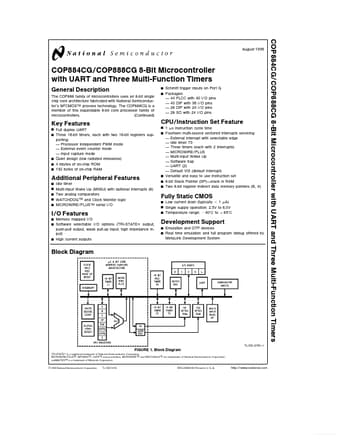

COP884CG Datasheet Preview — Preview of COP884CG PDF

Datasheet Details

Part number	COP884CG
Manufacturer	National Semiconductor ↗
File Size	442.55 KB
Description	8-Bit Microcontroller with UART and Three Multi-Function Timers
Datasheet	COP884CG_NationalSemiconductor.pdf

COP884CG Product details

Description

The COP888 family of microcontrollers uses an 8-bit single chip core architecture fabricated with National Semiconductor’s M2CMOSTM process technology The COP888CG is a member of this expandable 8-bit core processor family of microcontrollers (Continued) Y Y Schmitt trigger inputs on Port G Packages 44 PLCC with 40 I O pins 40 DIP with 36 I O pins 28 DIP with 24 I O pins 28 SO with 24 I O pins Key

Features

Y Y CPU Instruction Set Feature Y Y Y Y Y Full duplex UART Three 16-bit timers each with two 16-bit registers supporting Processor independent PWM mode External event counter mode Input capture mode Quiet design (low radiated emissions) 4 kbytes of on-chip ROM 192 bytes of on-chip RAM Additional Peripheral Features Y Y Y Y Y Y Y Y Idle timer Multi-Input Wake Up (MIWU) with optional interrupts (8) Two analog comparators.
