DM54121 - One-Shot with Clear and Complementary Outputs

Datasheet Summary

Description

The DM54 74121 is a monostable multivibrator featuring both positive and negative edge triggering with complementary outputs An internal 2kX timing resistor is provided for design convenience minimizing component count and layout problems This device can be used with a single external capacitor Inpu

Features

  • Y Triggered from active-high transition or active-low transition.

📥 Download Datasheet

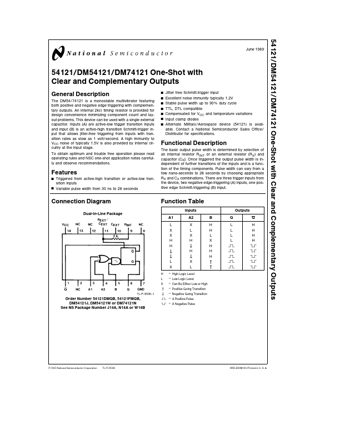

Datasheet preview – DM54121

Datasheet Details

Part number DM54121
Manufacturer National Semiconductor
File Size 118.19 KB
Description One-Shot with Clear and Complementary Outputs
Datasheet download datasheet DM54121 Datasheet
Additional preview pages of the DM54121 datasheet.

📁 Similar Datasheet

  • DM54141 - BCD / DECIMAL DECODERS / DRIVERS (MSI)
  • DM54155 - Dual 2-Line to 4-Line Decoders/Demultiplexers (ETC)
  • DM5441A - BCD / DECIMAL DECODERS / DRIVERS (MSI)
  • DM5446A - BCD/7-Segment Decoder/Driver (MSI)
  • DM5447A - BCD/7-Segment Decoder/Driver (MSI)
  • DM5448 - BCD/7-Segment Decoder/Driver (MSI)
  • DM5489B - 64-BIT READ/WRITE MEMORIES (ETC)
  • DM54H71 - Series 54H / 74H (National)
  • DM54L89A - 64-BIT READ/WRITE MEMORIES (ETC)
  • DM54LS47 - BCD/7-Segment Decoder/Driver (MSI)
Other Datasheets by National Semiconductor
  • DM54122 - Retriggerable Resettable Multivibrator
  • DM54123 - Dual Retriggerable One-Shot with Clear and Complementary Outputs
  • DM54125 - Quad TRI-STATE Buffers
  • DM5410 - Triple 3-Input NAND Gates
  • DM54132 - DM54132/DM74132 Quad 2-Input NAND Gates with Schmitt Trigger Inputs
  • DM5414 - Hex Inverter with Schmitt Trigger Inputs
  • DM54141 - BCD to decimal decoder/driver
  • DM54150 - Data Selectors/Multiplexers

Full PDF Text Transcription

Click to expand full text
54121 DM54121 DM74121 One-Shot with Clear and Complementary Outputs June 1989 54121 DM54121 DM74121 One-Shot with Clear and Complementary Outputs General Description The DM54 74121 is a monostable multivibrator featuring both positive and negative edge triggering with complementary outputs An internal 2kX timing resistor is provided for design convenience minimizing component count and layout problems This device can be used with a single external capacitor Inputs (A) are active-low trigger transition inputs and input (B) is an active-high transition Schmitt-trigger input that allows jitter-free triggering from inputs with transition rates as slow as 1 volt second A high immunity to VCC noise of typically 1 5V is also provided by internal circuitry at the input stage To obtain optimum a
