DM54LS32 - Quad 2-Input OR Gates

National Semiconductor

📥 Download Datasheet

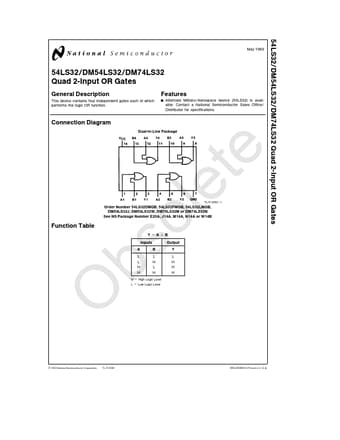

DM54LS32 Datasheet Preview — Preview of DM54LS32 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: DM54LS32
Manufacturer: National Semiconductor
File Size: 317.15 KB
Datasheet: DM54LS32_NationalSemiconductor.pdf
Description: Quad 2-Input OR Gates

DM54LS32 Product details

Description

This device contains four independent gates each of which performs the logic OR function

Features

Y Alternate Military Aerospace device (54LS32) is available Contact a National Semiconductor Sales Office Distributor for specifications Connection Diagram Dual-In-Line Package Function Table TL F 6361.
1 Order Number 54LS32DMQB 54LS32FMQB 54LS32LMQB DM54LS32J DM54LS32W DM74LS32M or DM74LS32N See NS Package Number E20A J14A M14A N14A or W14B YeAaB Inputs Output AB Y LL LH HL HH L H H H H e High Logic Level L e Low Logic Level C1995 National Semiconductor Corporation TL F 63.
