DM7442A

BCD to Decimal Decoders

National Semiconductor

DM7442A Features

* Y Diode clamped inputs Y Also for application as 4-line-to-16-line decoders 3-line- to-8-line decoders Y All outputs are high for invalid input conditions Y Typical power dissipation 140 mW Y Typical propagation delay 17 ns Y Alternate Military Aerospace device (5442A) is avail- able Contact a Natio

DM7442A General Description

These BCD-to-decimal decoders consist of eight inverters and ten four-input NAND gates The inverters are connected in pairs to make BCD input data available for decoding by the NAND gates Full decoding of input logic ensures that all outputs remain off for all invalid (10

*15) input condition.

DM7442A Datasheet (109.89 KB)

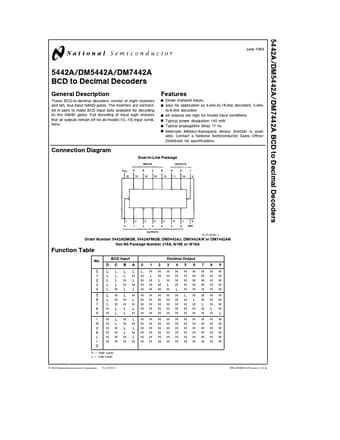

DM7442A Datasheet Preview — Preview of DM7442A PDF

Datasheet Details

Part number:

DM7442A

Manufacturer:

National Semiconductor

File Size:

109.89 KB

Description:

Bcd to decimal decoders.
