DM7445 Datasheet, Decoders/drivers, National Semiconductor

DM7445 Features

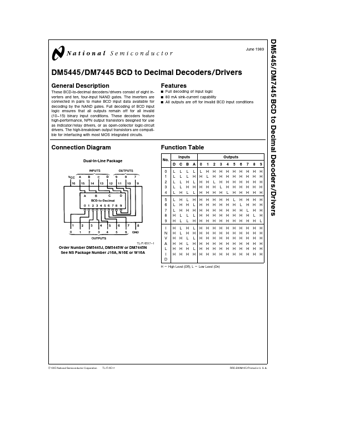

  • Decoders/drivers Y Full decoding of input logic Y 80 mA sink-current capability Y All outputs are off for invalid BCD input conditions Connection Diagram Function Table Dual-In-Line Package TL F 6517

PDF File Details

Part number:

DM7445

Manufacturer:

National Semiconductor

File Size:

96.65kb

Download:

📄 Datasheet

Description:

Bcd to decimal decoders/drivers. These BCD-to-decimal decoders drivers consist of eight inverters and ten four-input NAND gates The inverters are connected in pairs t
