DM74LS241

Octal TRI-STATE Buffers/Line Drivers/Line Receivers

DM74LS241 Features

* Y Y Y Y Y TRI-STATE outputs drive bus lines directly PNP inputs reduce DC loading on bus lines Hysteresis at data inputs improves noise margins Typical IOL (sink current) 54LS 12 mA 74LS 24 mA Typical IOH (source current) b 12 mA 54LS b 15 mA 74LS Typical propagation delay times Inverting 10 5 ns

DM74LS241 General Description

These buffers line drivers are designed to improve both the performance and PC board density of TRI-STATE buffers drivers employed as memory-address drivers clock drivers and bus-oriented transmitters receivers Featuring 400 mV of hysteresis at each low current PNP data line input they provide impro.

DM74LS241 Datasheet (142.98 KB)

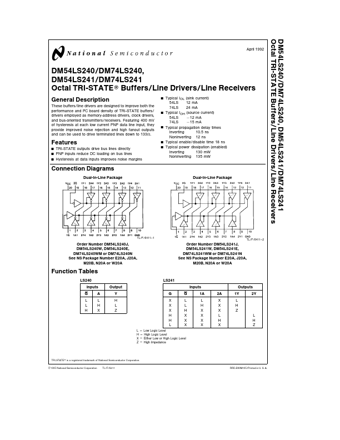

Preview of DM74LS241 PDF

Datasheet Details

Part number:

DM74LS241

Manufacturer:

National Semiconductor

File Size:

142.98 KB

Description:

Octal tri-state buffers/line drivers/line receivers.
DM54LS240 DM74LS240 DM54LS241 DM74LS241 Octal TRI-STATE Buffers Line Drivers Line Receivers April 1992 DM54LS240 DM74LS240 DM54LS241 DM74LS241 Octal.
