DM74S473 - (512 x 8) 4096-Bit TTL PROM

National Semiconductor

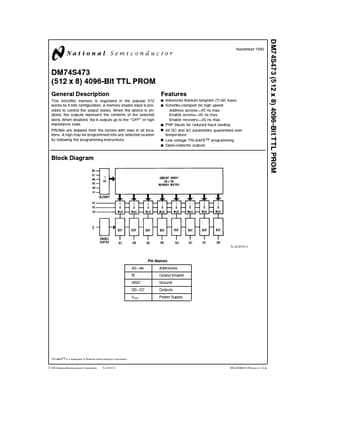

DM74S473 Datasheet Preview — Preview of DM74S473 PDF

Datasheet Details

Part number	DM74S473
Manufacturer	National Semiconductor ↗
File Size	126.29 KB
Description	(512 x 8) 4096-Bit TTL PROM
Datasheet	DM74S473_NationalSemiconductor.pdf

DM74S473 Product details

Description

This Schottky memory is organized in the popular 512 words by 8 bits configuration A memory enable input is provided to control the output states When the device is enabled the outputs represent the contents of the selected word When disabled the 8 outputs go to the ‘‘OFF’’ or high impedance state PROMs are shipped from the factory with lows in all locations A high may be programmed into any selected location by following the programming instructions

Features

Y Y Y Y Y Y Advanced titanium-tungsten (Ti-W) fuses Schottky-clamped for high speed Address access 45 ns max Enable access 30 ns max Enable recovery 30 ns max PNP inputs for reduced input loading All DC and AC parameters guaranteed over temperature Low voltage TRI-SAFETM programming Open-collector outputs Block Diagram TL D 9715.
1 Pin Names A0.
A8 G GND Q0.
Q7 VCC Addresses Output Enable Ground Outputs Power Supply TRI-SAFETM is a trademark of National Semiconducto.
