DM75493

quad LED segment driver

DM75493 Features

* Low voltage operation

* Low input current for MOS compatibility

* Low standby power

* Display blahking capability

* Output current regulation

* Quad high gain circuits logic and connection diagram Dual-In-Line Package Vss OUT, REF, IN, IN2 REF:!

DM75493 General Description

The OM75493 is a quad LED segment driver. It is designed to interface between MOS IC's and LED's. An external resistor is required for each segment to drive the output current which is approximately equal to O.7V/RL and is relatively con.tant, independent ot supply variations. Blank
* ing can be .

DM75493 Datasheet (96.22 KB)

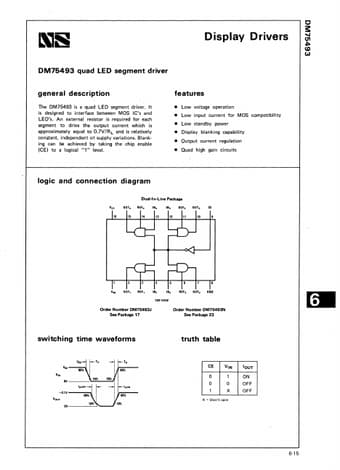

Preview of DM75493 PDF

Datasheet Details

Part number:

DM75493

Manufacturer:

National Semiconductor

File Size:

96.22 KB

Description:

Quad led segment driver.
