DP83848YB - PHYTER - Extreme Temperature Single Port 10/100 Mb/s Ethernet Physical Layer Transceiver

Product Overview

National Semiconductor

Part number	DP83848YB
Manufacturer	National Semiconductor
File Size	2.94 MB
Description	PHYTER - Extreme Temperature Single Port 10/100 Mb/s Ethernet Physical Layer Transceiver
Datasheet	DP83848YB Datasheet

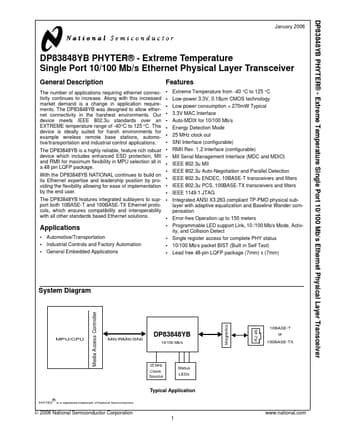

Additional preview pages of the DP83848YB datasheet.

The number of applications requiring ethernet connectivity continues to increase.

Extreme Temperature from -40 °C to 125 °C Low-power 3.3V, 0.18µm CMOS technology Low power consumption < 270mW Typical 3.3V MAC Interface Auto-MDIX for 10/100 Mb/s Energy Detection Mode 25 MHz clock out SNI Interface (configurable) RMII Rev. 1.2 Interface (configurable) MII Serial Management Interface (MDC and MDIO) IEEE 802.3u MII IEEE 8.
