DS1632 - CMOS Dual Peripheral Drivers

This page provides the datasheet information for the DS1632, a member of the DS1631 CMOS Dual Peripheral Drivers family.

Datasheet Summary

Description

The DS1631 series of dual peripheral drivers was designed to be a universal set of interface components for CMOS circuits Each circuit has CMOS compatible inputs with thresholds that track as a function of VCC (approximately VCC) The inputs are PNPs providing the high impedance necessary for interfa

Features

output transistor protection if the VCC supply is lost by forcing the output into the high impe- dance OFF state with the same breakdown levels as when VCC was applied Pin-outs are the same as the respective logic functions found in the following popular series of circuits DS75451 DS75461 This feature allows direct conversion of present systems to the MM74C CMOS family and DS1631 series circuits with great power savings The DS1631 series is also TTL compatible at VCC e 5V Features Y CMOS comp.

Datasheet Details

Part number	DS1632
Manufacturer	National Semiconductor
File Size	370.03 KB
Description	CMOS Dual Peripheral Drivers
Datasheet	DS1632 Datasheet

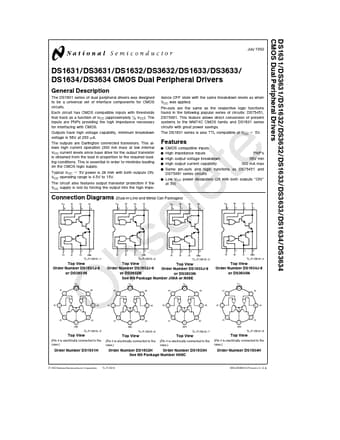

Additional preview pages of the DS1632 datasheet.

📁 Similar Datasheet

DS1631 - High-Precision Digital Thermometer/Thermostat (Maxim)

DS1631A - High-Precision Digital Thermometer/Thermostat (Maxim)

DS160-40THD02 - SCHOTTKY BARRIER DIODE (JCET)

DS1602 - Elapsed Time Counter (Maxim Integrated)

DS1603 - TRI-STATE Dual Receiver (National)

DS1603 - Elapsed Time Counter (Maxim Integrated)

DS1608 - EconoRAM Time Chip (Dallas Semiconductor)

DS1608B-104MLB - Backlight Inductirs (Coilcraft)

DS1608B-104MLC - Backlight Inductirs (Coilcraft)

DS1608B-104MLD - Backlight Inductirs (Coilcraft)

Full PDF Text Transcription

Click to expand full text

Obsolete DS1631 DS3631 DS1632 DS3632 DS1633 DS3633 DS1634 DS3634 CMOS Dual Peripheral Drivers July 1992 DS1631 DS3631 DS1632 DS3632 DS1633 DS3633 DS1634 DS3634 CMOS Dual Peripheral Drivers General Description The DS1631 series of dual peripheral drivers was designed to be a universal set of interface components for CMOS circuits Each circuit has CMOS compatible inputs with thresholds that track as a function of VCC (approximately VCC) The inputs are PNPs providing the high impedance necessary for interfacing with CMOS Outputs have high voltage capability minimum breakdown voltage is 56V at 250 mA The outputs are Darlington connected transistors This allows high current operation (300 mA max) at low internal VCC current levels since base drive for the output transistor is obtained from
