DS2004 Datasheet, Drivers, National Semiconductor

DS2004 Features

  • Drivers Y Y Y Y Y Y Seven high gain Darlington pairs High output voltage (VCE e 50V) High output current (IC e 350 mA) TTL PMOS CMOS compatible Suppression diodes for inductive loads Extended

PDF File Details

Part number:

DS2004

Manufacturer:

National Semiconductor

File Size:

142.67kb

Download:

📄 Datasheet

Description:

(ds2003 / ds2004) high current/voltage darlington drivers. The DS2003 DS9667 DS2004 are comprised of seven high voltage high current NPN Darlington transistor pairs All units feature common em

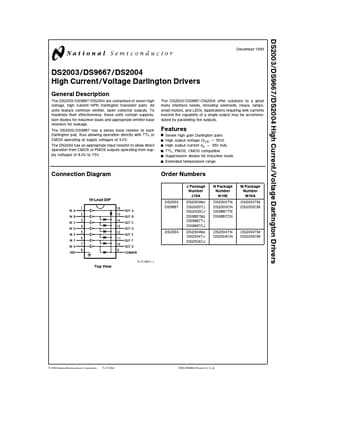

Datasheet Preview: DS2004 📥 Download PDF (142.67kb)
Page 2 of DS2004 Page 3 of DS2004

DS2004 Application

  • Applications requiring sink currents beyond the capability of a single output may be accommodated by paralleling the outputs Features Y Y Y Y Y Y
