DS25CP104A - (DS25CP104A / DS25CP114) 3.125 Gbps 4x4 LVDS Crosspoint Switch

Description

The DS25CP104A and DS25CP114 are 3.125 Gbps 4x4 LVDS crosspoint switches optimized for high-speed signal routing and switching over lossy FR-4 printed circuit board backplanes and balanced cables.

Fully differential signal paths ensure exceptional signal integrity and noise immunity.

Features

  • DC - 3.125 Gbps low jitter, low skew, low power operation.
  • Pin and SMBus configurable, fully differential, nonblocking architecture.
  • Pin (two levels) and SMBus (four levels) selectable preemphasis and equalization eliminate ISI jitter to CML and LVPECL drivers.
  • Wide Input Common Mode Range enables easy interface.
  • LOS circuitry detects open inputs fault condition.
  • On-chip 100Ω input and output termination minimizes insertion and return losses, reduces component c.

📥 Download Datasheet

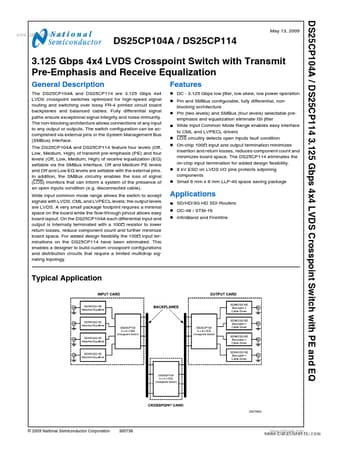

Datasheet preview – DS25CP104A

Datasheet Details

Part number DS25CP104A
Manufacturer National Semiconductor
File Size 625.92 KB
Description (DS25CP104A / DS25CP114) 3.125 Gbps 4x4 LVDS Crosspoint Switch
Datasheet download datasheet DS25CP104A Datasheet
Additional preview pages of the DS25CP104A datasheet.

📁 Similar Datasheet

  • DS25CP104A - DS25CP104A/CP114 3.125 Gbps 4x4 LVDS Xpoint Sw w/Xmit Pre-Emp Receive Equal (Rev. C) (ETCTI)
  • DS25CP102 - 3.125 Gbps 2X2 LVDS Crosspoint sw w/ Xmit Pre-Emphasis Receive Equalization (Rev. E) (ETCTI)
  • DS25CP102Q - Auto 3.125Gbps 2X2 LVDS Crosspoint Sw w/Xmit Pre-Emphasis Receive Equalization (Rev. E) (ETCTI)
  • DS25CP102Q-Q1 - Auto 3.125Gbps 2X2 LVDS Crosspoint Sw w/Xmit Pre-Emphasis Receive Equalization (Rev. E) (ETCTI)
  • DS25CP114 - DS25CP104A/CP114 3.125 Gbps 4x4 LVDS Xpoint Sw w/Xmit Pre-Emp Receive Equal (Rev. C) (ETCTI)
  • DS25CP152 - DS25CP152 3.125 Gbps LVDS 2x2 Crosspoint Switch (Rev. D) (ETCTI)
  • DS25CP152Q - DS25CP152Q Automotive 3.125 Gbps LVDS 2x2 Crosspoint Switch (Rev. E) (ETCTI)
  • DS25CP152Q-Q1 - DS25CP152Q Automotive 3.125 Gbps LVDS 2x2 Crosspoint Switch (Rev. E) (ETCTI)
  • DS25C400 - DS25C400 Quad 2.5 Gbps Serializer/Deserializer (Rev. B) (ETCTI)
  • DS2501 - 1A VERY LOW DROPOUT VOLTAGE REGULATORS (Advanced Monolithic Systems)
Other Datasheets by National Semiconductor
  • DS25CP104 - 3.125 Gbps 4x4 LVDS Crosspoint Switch
  • DS25CP114 - (DS25CP104A / DS25CP114) 3.125 Gbps 4x4 LVDS Crosspoint Switch
  • DS25C400 - Quad 2.5 Gbps Serializer/Deserializer
  • DS25BR100 - 3.125 Gbps LVDS Buffer
  • DS25BR100 - (DS25BR100 / DS25BR101) 3.125 Gbps LVDS Buffer
  • DS25BR101 - (DS25BR100 / DS25BR101) 3.125 Gbps LVDS Buffer
  • DS25BR110 - 3.125 Gbps LVDS Buffer
  • DS25BR120 - 3.125 Gbps LVDS Buffer

Full PDF Text Transcription

Click to expand full text
DS25CP104A / DS25CP114 3.125 Gbps 4x4 LVDS Crosspoint Switch with PE and EQ www.DataSheet4U.com May 13, 2009 DS25CP104A / DS25CP114 3.125 Gbps 4x4 LVDS Crosspoint Switch with Transmit Pre-Emphasis and Receive Equalization General Description The DS25CP104A and DS25CP114 are 3.125 Gbps 4x4 LVDS crosspoint switches optimized for high-speed signal routing and switching over lossy FR-4 printed circuit board backplanes and balanced cables. Fully differential signal paths ensure exceptional signal integrity and noise immunity. The non-blocking architecture allows connections of any input to any output or outputs. The switch configuration can be accomplished via external pins or the System Management Bus (SMBus) interface.
