DS75115

Dual Differential Line Receiver

DS75115 Features

* Y Y Y Y Y Y Y Y Single 5V supply High common-mode voltage range Each channel individually strobed Independent response time control Uncommitted collector or active pull-up option TTL compatible output Optional 130X termination resistors Direct replacement for 9615 Connection Diagram Dual-In-Line P

DS75115 General Description

The DS75115 DS9615 is a dual differential line receiver designed to sense differential signals from data transmission lines Designed for operation over military and commercial temperature ranges the DS75115 DS9615 can typically receive g 500 mV differential data with g 15V common-mode noise Outputs .

DS75115 Datasheet (178.95 KB)

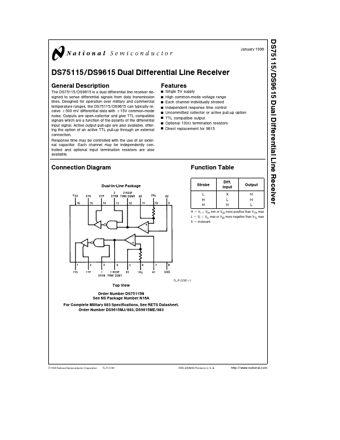

Preview of DS75115 PDF

Datasheet Details

Part number:

DS75115

Manufacturer:

National Semiconductor

File Size:

178.95 KB

Description:

Dual differential line receiver.
