DS96F174M - Quad Differential Drivers

This page provides the datasheet information for the DS96F174M, a member of the DS96F172 Quad Differential Drivers family.

Datasheet Summary

Description

The DS96F172 and the DS96F174 are high speed quad differential line drivers designed to meet EIA-485 Standards.

The DS96F172 and the DS96F174 offer improved performance due to the use of L-FAST bipolar technology.

📥 Download Datasheet

Datasheet preview – DS96F174M

📁 Similar Datasheet

  • DS96F174MQML - DS96F172MQML/DS96F174MQML EIA-485/EIA-422 Quad Differential Drivers (Rev. A) (ETCTI)
  • DS96F174MQML-SP - DS96F172MQML/DS96F174MQML EIA-485/EIA-422 Quad Differential Drivers (Rev. A) (ETCTI)
  • DS96F172MQML - DS96F172MQML/DS96F174MQML EIA-485/EIA-422 Quad Differential Drivers (Rev. A) (ETCTI)
  • DS96F173MQML - DS96F173MQML/DS96F175MQML EIA-485/EIA-422 Quad Differential Receivers (Rev. A) (ETCTI)
  • DS96F175MQML - DS96F173MQML/DS96F175MQML EIA-485/EIA-422 Quad Differential Receivers (Rev. A) (ETCTI)
  • DS96F175MQML-SP - DS96F173MQML/DS96F175MQML EIA-485/EIA-422 Quad Differential Receivers (Rev. A) (ETCTI)
  • DS9610B - High Voltage Synchronous Rectified Buck MOSFET Driver (Richtek)
  • DS9638QML - DS9638QML RS-422 Dual High Speed Differential Line Driver (Rev. A) (ETCTI)
  • DS9034PC - PowerCap (Dallas Semiconducotr)
  • DS9034PCI - PowerCap (Dallas Semiconducotr)
Other Datasheets by National Semiconductor

Full PDF Text Transcription

Click to expand full text

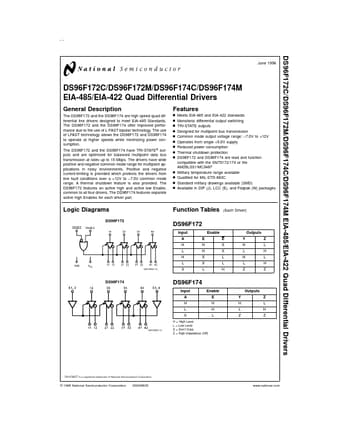

DS96F172C/DS96F172M/DS96F174C/DS96F174M EIA-485/EIA-422 Quad Differential Drivers June 1998 DS96F172C/DS96F172M/DS96F174C/DS96F174M EIA-485/EIA-422 Quad Differential Drivers General Description The DS96F172 and the DS96F174 are high speed quad differential line drivers designed to meet EIA-485 Standards. The DS96F172 and the DS96F174 offer improved performance due to the use of L-FAST bipolar technology. The use of LFAST technology allows the DS96F172 and DS96F174 to operate at higher speeds while minimizing power consumption. The DS96F172 and the DS96F174 have TRI-STATE® outputs and are optimized for balanced multipoint data bus transmission at rates up to 15 Mbps. The drivers have wide positive and negative common mode range for multipoint applications in noisy environments.
