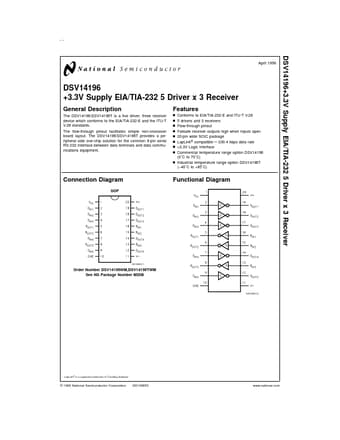

DSV14196TWM Datasheet - National Semiconductor

DSV14196TWM +3.3V Supply EIA/TIA-232 5 Driver x 3 Receiver

The DSV14196/DSV14196T is a five driver, three receiver device which conforms to the EIA/TIA-232-E and the ITU-T V.28 standards. The flow-through pinout facilitates simple non-crossover board layout. The DSV14196/DSV14196T provides a peripheral side one-chip solution for the common 9-pin serial RS-2.

DSV14196TWM Features

* Conforms to EIA/TIA-232-E and ITU-T V.28 5 drivers and 3 receivers Flow-through pinout Failsafe receiver outputs high when inputs open 20-pin wide SOIC package LapLink ® compatible

* 230.4 kbps data rate +3.3V Logic Interface Commercial temperature range option DSV14196 (0˚C to 70˚C) n Indus

DSV14196TWM_NationalSemiconductor.pdf
