HPC36003 High-Performance microControllers

The HPC16083 and HPC16003 are members of the HPCTM family of High Performance microControllers Each member of the family has the same core CPU with a unique memory and I O configuration to suit specific applications The HPC16083 has 8k bytes of on-chip ROM The HPC16003 has no on-chip ROM and is inte.

HPC36003 Features

* Y Y Y Y Y Y Y Y HPC family core features 16-bit architecture both byte and word 16-bit data bus ALU and registers 64k bytes of external direct memory addressing FAST 200 ns for fastest instruction when using 20 0 MHz clock 134 ns at 30 MHz High code efficiency most instructions are single byte 16

HPC36003 Datasheet (467.61 KB)

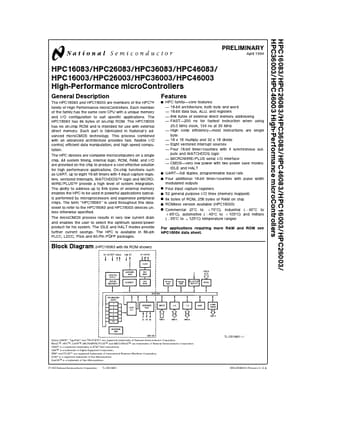

HPC36003 Datasheet Preview — Preview of HPC36003 PDF

Datasheet Details

Part number:

HPC36003

Manufacturer:

National Semiconductor

File Size:

467.61 KB

Description:

High-performance microcontrollers.
