LH0005C Datasheet Operational Amplifier

Manufacturer: National Semiconductor (now Texas Instruments)

LH0005C operational amplifier by National Semiconductor (now Texas Instruments) - Datasheet Preview

Datasheet Details

Part number	LH0005C
Manufacturer	National Semiconductor (now Texas Instruments)
File Size	72.88 KB
Description	Operational Amplifier
Download	LH0005C Download (PDF)

General Description

The LH0005C is a hybrid integrated circuit operational amplifier employing.

thick film resistors and discrete silicon semiconductors in its design.

The select matching of the input pairs of transistors results in low input bias currents and a very low input offset current both of which exhibit excellent temperature tracking.

Overview

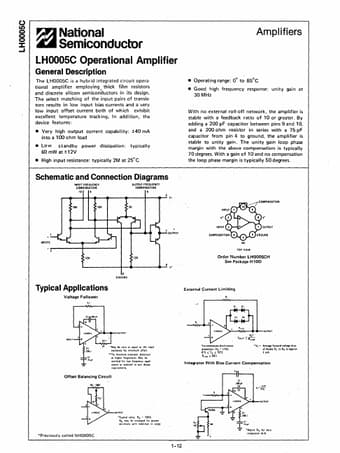

o oLooC') :E: ~National ~ Semiconductor ...J LH0005C Operational Amplifier Amplifiers.

Key Features

Very high output current capability: ±40 mA into a100 ohm load.
Low standby power dissipation: typically 60 mW at ±12V.
High input resistance: typically 2M at 25°C.
Operating range: 0° to 85°C.
Good high frequency response: unity gain at 30 MHz With no external roll-off network, the amplifier is stable with a feedback ratio of 10 or greater. By adding a 200 pF capacitor between pins 9 and 10, and a 200 ohm resistor in series with a 75 pF capacitor.
