LH0082

Optical Communication Receiver

LH0082 Features

* Single 4.5 to 12 Volt Supply

* DC to 50 Mbits/s NRZ Data Bandwidth

LH0082 General Description

The LH0082 is a general purpose, low-noise, fiber optic receiver, which may also be used as a fast current to voltage converter, or as a high speed voltage amplifier. The circuit includes a 2GHz gain-bandwidth FET-input amplifier, a 2.4 volt reference, a comparator with hysteresis, and all the nece.

LH0082 Datasheet (485.28 KB)

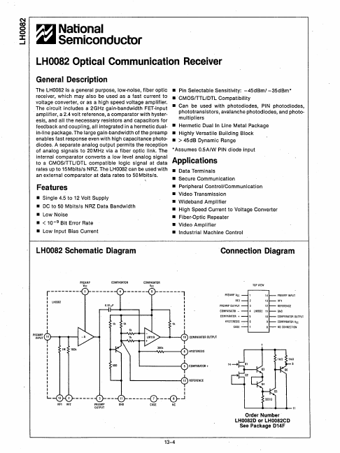

Preview of LH0082 PDF

Datasheet Details

Part number:

LH0082

Manufacturer:

National Semiconductor

File Size:

485.28 KB

Description:

Optical communication receiver.
