LM1084 - 5A Low Dropout Positive Regulators

Datasheet Summary

Description

The LM1084 is a series of low dropout voltage positive regulators with a maximum dropout of 1.5V at 5A of load current.

It has the same pin-out as National Semiconductor’s industry standard LM317.

Features

  • n Available in 3.3V, 5.0V, 12V and Adjustable Versions n Current Limiting and Thermal Protection n Output Current 5A n Industrial Temperature Range.
  • 40˚C to 125˚C n Line Regulation 0.015% (typical) n Load Regulation 0.1% (typical).

📥 Download Datasheet

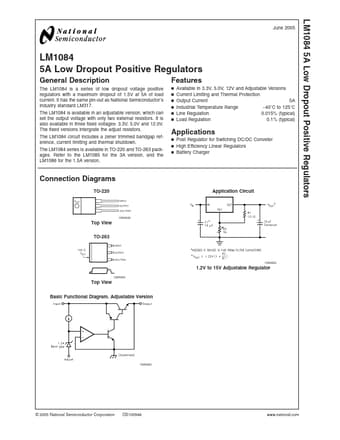

Datasheet preview – LM1084

Datasheet Details

Part number LM1084
Manufacturer National Semiconductor
File Size 714.67 KB
Description 5A Low Dropout Positive Regulators
Datasheet download datasheet LM1084 Datasheet
Additional preview pages of the LM1084 datasheet.

📁 Similar Datasheet

  • LM1084 - 5-A Low Dropout Positive Regulators (Texas Instruments)
  • LM1084 - 5.0A LDO Voltage Regulator (HTC)
  • LM108 - Precision Single OPAMP (Tomson)
  • LM108 - Operational Amplifier (Linear Technology)
  • LM108-N - Operational Amplifiers (Texas Instruments)
  • LM1085 - 3A Low Dropout Positive Voltage Regulator (CYStech Electronics)
  • LM1085 - 3A L.D.O. VOLTAGE REGULATOR (HTC)
  • LM1085 - 3-A Low Dropout Positive Regulators (Texas Instruments)
  • LM1085-05-220M - LOW DROPOUT 3 AMP POSITIVE VOLTAGE REGULATOR (Semelab)
  • LM1085-12-220M - LOW DROPOUT 3 AMP POSITIVE VOLTAGE REGULATOR (Semelab)
Other Datasheets by National Semiconductor
  • LM108 - Operational Amplifiers
  • LM1085 - 3A Low Dropout Positive Regulators
  • LM1086 - 1.5A Low Dropout Positive Regulators
  • LM108A - Operational Amplifiers
  • LM108AJAN - Operational Amplifiers
  • LM10 - Operational Amplifier/Voltage
  • LM100 - Voltage Regulator
  • LM1017 - 4-Bit Binary 7-Segment Decoder/Driver

Full PDF Text Transcription

Click to expand full text
LM1084 5A Low Dropout Positive Regulators June 2005 LM1084 5A Low Dropout Positive Regulators General Description The LM1084 is a series of low dropout voltage positive regulators with a maximum dropout of 1.5V at 5A of load current. It has the same pin-out as National Semiconductor’s industry standard LM317. The LM1084 is available in an adjustable version, which can set the output voltage with only two external resistors. It is also available in three fixed voltages: 3.3V, 5.0V and 12.0V. The fixed versions intergrate the adjust resistors. The LM1084 circuit includes a zener trimmed bandgap reference, current limiting and thermal shutdown. The LM1084 series is available in TO-220 and TO-263 packages. Refer to the LM1085 for the 3A version, and the LM1086 for the 1.5A version.
