LM131 Datasheet - National Semiconductor

Precision Voltage-to-Frequency Converters

LM131 Features

* Y Y Y Y Y Y Y Y Y Y Guaranteed linearity 0 01% max Improved performance in existing voltage-to-frequency conversion applications Split or single supply operation Operates on single 5V supply Pulse output compatible with all logic forms Excellent temperature stability g 50 ppm C max Low power diss

LM131 General Description

The LM131 LM231 LM331 family of voltage-to-frequency converters are ideally suited for use in simple low-cost circuits for analog-to-digital conversion precision frequencyto-voltage conversion long-term integration linear frequency modulation or demodulation and many other functions The output when .

LM131 Datasheet (280.01 KB)

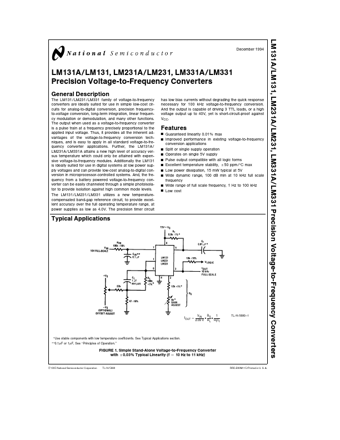

LM131 Datasheet Preview — Preview of LM131 PDF

Datasheet Details

Part number:

LM131

Manufacturer:

National Semiconductor

File Size:

280.01 KB

Description:

Precision voltage-to-frequency converters.
LM131A LM131 LM231A LM231 LM331A LM331 Precision Voltage-to-Frequency Converters December 1994 LM131A LM131 LM231A LM231 LM331A LM331 Precision Volt.
