LM2450 220V Monolithic Triple Channel 7 MHz DC Coupled CRT DTV Driver

The LM2450 is a triple channel high voltage DC coupled CRT driver circuit designed for use in DTV applications. The IC contains three high input impedance, wide band amplifiers which directly drive the RGB cathodes of a CRT. Each amplifier has a summing input where the DC level of the output is cont.

LM2450 Features

* 7 MHz bandwidth 100V black level adjustment range using 0V to 5V input Current output for IK feedback systems Greater than 130VP-P output swing capability 0V to 5V input voltage range Stable with 0 pF

* 20 pF capacitive loads and inductive peaking networks n Convenient TO-247 staggered thin le

LM2450_NationalSemiconductor.pdf

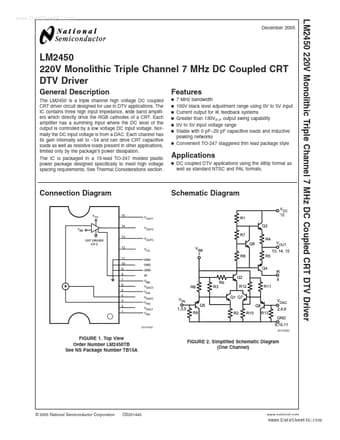

Preview of LM2450 PDF
