LM2465 - Monolithic Triple 5.5 ns High Gain CRT Driver

Description

The LM2465 is an integrated high voltage CRT driver circuit designed for use in color monitor applications.

The IC contains three high input impedance, wide band amplifiers which directly drive the RGB cathodes of a CRT.

20 and can drive CRT capac

Features

  • n Higher gain to match LM126X CMOS preamplifiers n 0V to 3.75V input range n Stable with 0.
  • 20 pF capacitive loads and inductive peaking networks n Same pinout as LM2467/8/9, maintaining the standard LM243X Family pinout for easy PCB layout n Convenient TO-220 staggered lead package style.

📥 Download Datasheet

Datasheet preview – LM2465

📁 Similar Datasheet

  • LM246 - QUAD BIPOLAR OPERATIONAL AMPLIFIER (STMicroelectronics)
  • LM2460 - Monolithic Triple Channel High Swing CRT Driver (Texas Instruments)
  • LM246D - PROGRAMMABLE QUAD BIPOLAR OPERATIONAL AMPLIFIERS (STMicroelectronics)
  • LM246N - PROGRAMMABLE QUAD BIPOLAR OPERATIONAL AMPLIFIERS (STMicroelectronics)
  • LM24010J - Display Module (Sharp)
  • LM24010Z - LCD Dot Matrix Unit (Sharp)
  • LM240120BCW - LCD Module User Manual (TOPWAY)
  • LM240120BFW - LCD Module User Manual (TOPWAY)
  • LM240120BFW-1 - LCD Module User Manual (TOPWAY)
  • LM240120DCW - LCD Module User Manual (TOPWAY)
Other Datasheets by National Semiconductor
  • LM2460 - Monolithic Triple Channel High Swing CRT Driver
  • LM2462 - Monolithic Triple 3 ns CRT Driver
  • LM2463 - Monolithic Triple 4 ns CRT Driver
  • LM2466 - Monolithic Triple 7.5 ns CRT Driver
  • LM2467 - Monolithic Triple 7.5 ns CRT Driver
  • LM2467T - Monolithic Triple 7.5 ns CRT Driver
  • LM2467TA - Monolithic Triple 7.5 ns CRT Driver
  • LM2468 - Monolothic Triple 14nS High Gain CRT Driver

Full PDF Text Transcription

Click to expand full text

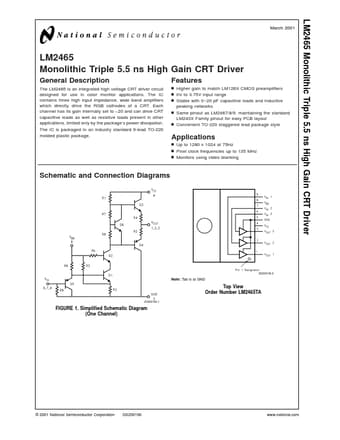

LM2465 Monolithic Triple 5.5 ns High Gain CRT Driver March 2001 LM2465 Monolithic Triple 5.5 ns High Gain CRT Driver General Description The LM2465 is an integrated high voltage CRT driver circuit designed for use in color monitor applications. The IC contains three high input impedance, wide band amplifiers which directly drive the RGB cathodes of a CRT. Each channel has its gain internally set to −20 and can drive CRT capacitive loads as well as resistive loads present in other applications, limited only by the package’s power dissipation. The IC is packaged in an industry standard 9-lead TO-220 molded plastic package. Features n Higher gain to match LM126X CMOS preamplifiers n 0V to 3.
