LM2469TA Datasheet, Driver, National Semiconductor

LM2469TA Features

  • Driver n Higher gain to match LM126X CMOS preamplifiers Schematic Diagram Connection Diagram DS200006-2 Note: Tab is at GND. DS200006-1 FIGURE 1. Simplified Schematic Diagram (One Channe

PDF File Details

Part number:

LM2469TA

Manufacturer:

National Semiconductor

File Size:

445.23kb

Download:

📄 Datasheet

Description:

Monolothic triple 9ns high gain crt driver. The LM2469 is an integrated high voltage CRT driver circuit designed for use in color monitor applications. The IC contains three hig

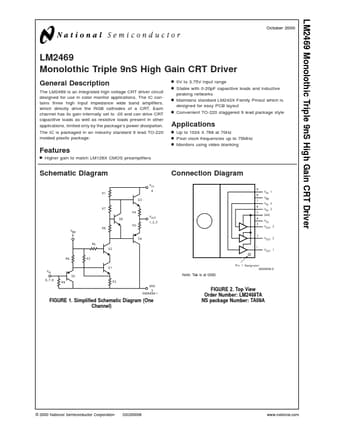

Datasheet Preview: LM2469TA 📥 Download PDF (445.23kb)
Page 2 of LM2469TA Page 3 of LM2469TA

LM2469TA Application

  • Applications The IC contains three high input impedance wide band amplifiers, which directly drive the RGB cathodes of a CRT. Each channel has its
