LM2485 Datasheet, Clamp, National Semiconductor

LM2485 Features

  • Clamp n n n n VCC capable of up to 220V VBB selectable to 8V or 12V via Pin 12 option Wide bias output voltage range of over 100V Inverted output pulse suitable for G1 blanking, selectable to

PDF File Details

Part number:

LM2485

Manufacturer:

National Semiconductor

File Size:

858.98kb

Download:

📄 Datasheet

Description:

220v triple bias clamp. The LM2485 is a triple channel clamp amplifier used to DC restore the AC coupled outputs of a DTV CRT driver and for cut-off adjustme

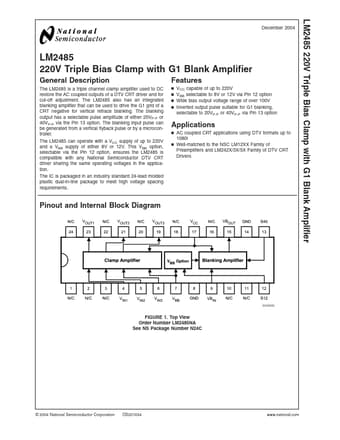

Datasheet Preview: LM2485 📥 Download PDF (858.98kb)
Page 2 of LM2485 Page 3 of LM2485

LM2485 Application

  • Applications n AC coupled CRT applications using DTV formats up to 1080i n Well-matched to the NSC LM12XX Family of Preamplifiers and LM242X/3X/5X F
