LM2700

Step-up PWM DC/DC Converter

National Semiconductor

LM2700 Features

* continuous switching at light loads and operates with a switching quiescent current of 2.0mA at 600kHz and 3.0mA at 1.25MHz. The LM2700 is available in a low profile 14-lead TSSOP package or a 14-lead LLP package. n n n n n Input undervoltage protection Adjustable output voltage up to 17.5V 600kHz/1

LM2700 General Description

The LM2700 is a step-up DC/DC converter with a 3.6A, 80mΩ internal switch and pin selectable operating frequency. With the ability to produce 500mA at 8V from a single Lithium Ion battery, the LM2700 is an ideal part for biasing LCD displays. The LM2700 can be operated at switching frequencies of 60.

LM2700 Datasheet (478.56 KB)

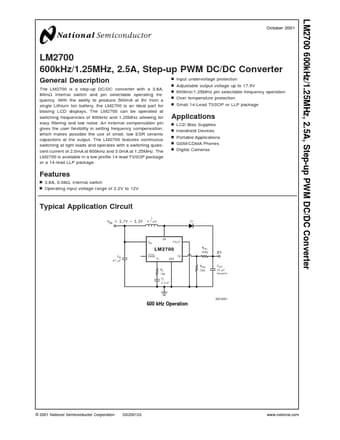

LM2700 Datasheet Preview — Preview of LM2700 PDF

Datasheet Details

Part number:

LM2700

Manufacturer:

National Semiconductor

File Size:

478.56 KB

Description:

Step-up pwm dc/dc converter.
