LM3086 - Transistor Arrays

Datasheet Summary

Description

The LM3045 LM3046 and LM3086 each consist of five general purpose silicon NPN transistors on a common monolithic substrate Two of the transistors are internally connected to form a differentially-connected pair The transistors are well suited to a wide variety of applications in low power system in

Features

  • Y Y Y Y Y Y Two matched pairs of transistors VBE matched g 5 mV Input offset current 2 mA max at IC e 1 mA Five general purpose monolithic transistors Operation from DC to 120 MHz Wide operating current range Low noise figure 3 2 dB typ at 1 kHz Full military b 55 C to a 125 C temperature range (LM3045).

📥 Download Datasheet

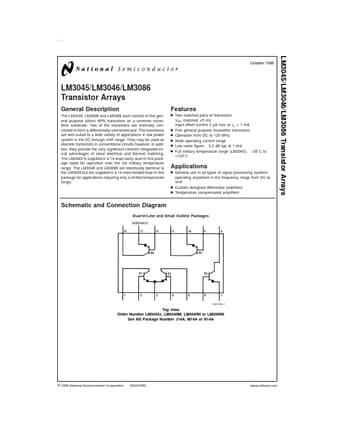

Datasheet preview – LM3086

📁 Similar Datasheet

  • LM3086BCW - LCD Module User Manual (TOPWAY)
  • LM3086BFW - LCD Module User Manual (TOPWAY)
  • LM308 - Operational Amplifiers (Linear Technology)
  • LM308 - Precision Single OPAMP (Tomson)
  • LM308A - Precision Operational Amplifier (ON Semiconductor)
  • LM308A - Precision Operational Amplifier (Motorola Inc)
  • LM308A - Operational Amplifiers (Linear Technology)
  • LM308A - Precision Single OPAMP (Tomson)
  • LM30-3015PC - Sensors (Greegoo)
  • LM30-3015PC - Sensors (ETC)
Other Datasheets by National Semiconductor
  • LM308 - Operational Amplifiers
  • LM3080 - Operational Transconductance Amplifier
  • LM3089 - LM3089 FM Receiver IF System
  • LM308A - Operational Amplifiers
  • LM300 - Voltage Regulator
  • LM3000 - Dual Synchronous Emulated Current Mode Controller
  • LM3001 - Primary Side PWM Driver
  • LM301 - Operational Amplifiers

Full PDF Text Transcription

Click to expand full text
LM3045 LM3046 LM3086 Transistor Arrays December 1994 LM3045 LM3046 LM3086 Transistor Arrays General Description The LM3045 LM3046 and LM3086 each consist of five general purpose silicon NPN transistors on a common monolithic substrate Two of the transistors are internally connected to form a differentially-connected pair The transistors are well suited to a wide variety of applications in low power system in the DC through VHF range They may be used as discrete transistors in conventional circuits however in addition they provide the very significant inherent integrated circuit advantages of close electrical and thermal matching The LM3045 is supplied in a 14-lead cavity dualin-line package rated for operation over the full military temperature range The LM3046 and LM3086 are electricall
