LM3310 Step-up PWM DC/DC Converter

National Semiconductor

Description

LM3310 Step-up PWM DC/DC Converter with Integrated Op-Amp and Gate Pulse Modulation Switch August 2005 LM3310 Step-up PWM DC/DC Converter with Integ.
The LM3310 is a step-up DC/DC converter integrated with an Operational Amplifier and a gate pulse modulation switch.

📥 Download Datasheet

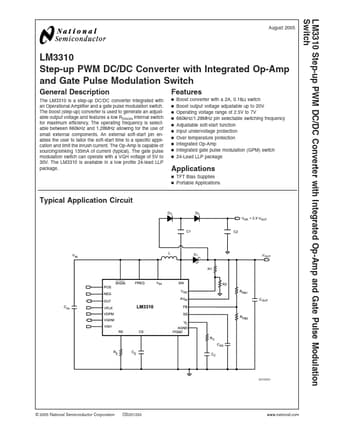

LM3310 Datasheet Preview — Preview of LM3310 PDF

Datasheet Specifications

Part number: LM3310
Manufacturer: National Semiconductor
File Size: 1.63 MB
Datasheet: LM3310_NationalSemiconductor.pdf
Description: Step-up PWM DC/DC Converter

Applications

* n TFT Bias Supplies n Portable Applications Typical Application Circuit 20133331 © 2005 National Semiconductor Corporation DS201333 www. national. com LM3310 Connection Diagram 20133304 LLP-24 (Top View) θJA=37˚C/W Ordering Information Order Number LM3310SQ LM3310SQX LM3310SQ LM3310SQX NOPB
