LM3431AQ, LM3431 Datasheet - National Semiconductor

LM3431AQ 3-Channel Constant Current LED Driver

The LM3431 is a 3-channel linear current controller combined with a boost switching controller ideal for driving LED backlight panels in space critical applications. The LM3431 drives 3 external NPN transistors or MOSFETs to deliver high accuracy constant current to 3 LED strings. Output current is .

LM3431AQ Features

* LED cathode feedback to minimize regulator headroom and optimize efficiency. A DIM input pin controls LED brightness from analog or digital control signals. Dimming frequencies up to 25 kHz are possible with a contrast ratio of 100:1. Contrast ratios greater than 1000:1 are possible at lower dimming

LM3431_NationalSemiconductor.pdf

This datasheet PDF includes multiple part numbers: LM3431AQ, LM3431. Please refer to the document for exact specifications by model.

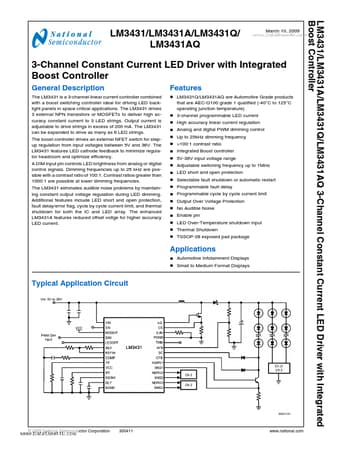

LM3431AQ Datasheet Preview Page 2 LM3431AQ Datasheet Preview Page 3

Datasheet Details

Part number:

LM3431AQ, LM3431

Manufacturer:

National Semiconductor

File Size:

621.22 KB

Description:

3-channel constant current led driver.

Note:

This datasheet PDF includes multiple part numbers: LM3431AQ, LM3431.
Please refer to the document for exact specifications by model.
